For those that already have a good sound system but want to level up and add some epic bass – this is the package is for you!
This package includes:
1x SYN DX-2 Wet Sounds Class D 2 Channel Marine Amplifier
1x REVO 12 Wet Sounds HIGH POWER 3 Ohm V2 Subwoofer

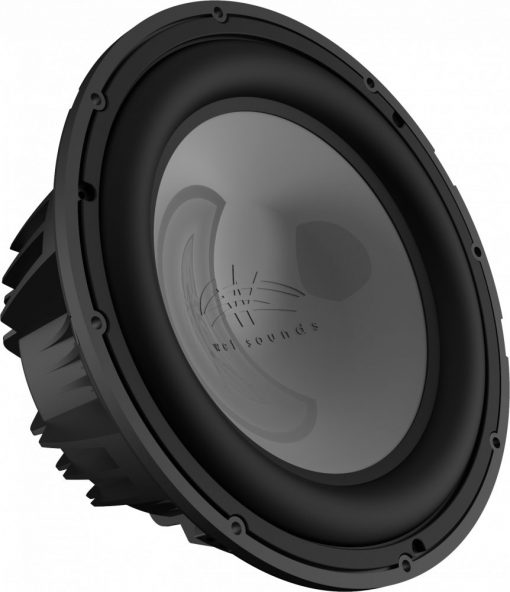

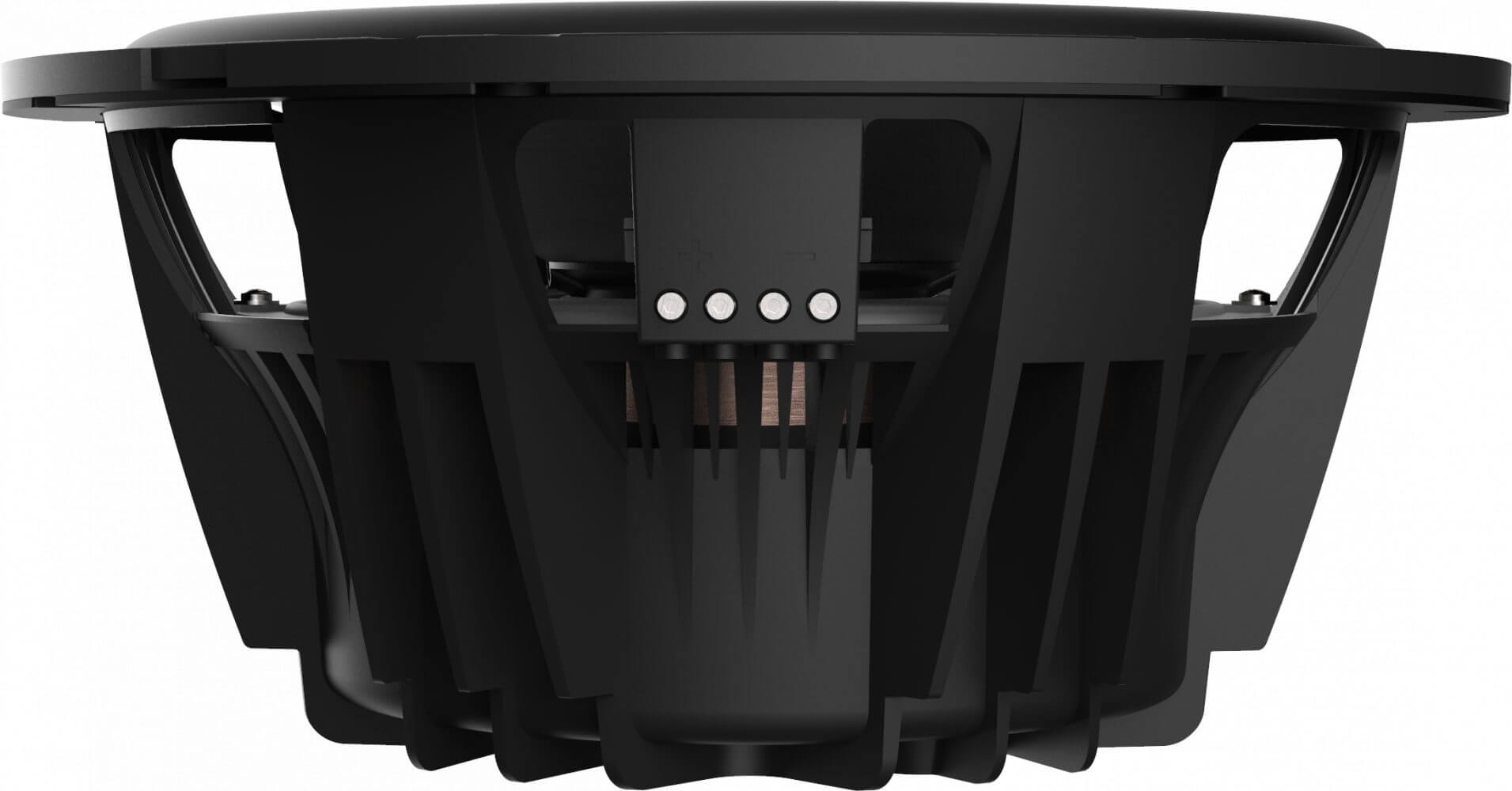

REVO 12 HIGH POWER SUBWOOER
High Power REVO subs are recommended for applications where there is adequate room for a specifically designed sealed or ported subwoofer enclosure. Full specifications to design enclosures for REVO HP. Both 10” & 12” REVO HP Subs are available in Black frames (with metallic grey cones) & single 4 Ohm impedance.
All REVO 10” & 12” Subwoofers share the same design features:
• Nylas Composite Frame – to withstand extreme environmental use. Designed to accept optional RGB wiring.
• Injection Moulded Composite Cone – For durability & low distortion.
• Santoprene Rubber Spider – Much more durable to water & temperature changes than a traditional treated Cotton Spider used by the majority of marine speakers & subwoofers.
• Santoprene Rubber Surround – Offers a superior bond to the composite cone. Also resists deterioration due to water, temperature & ultraviolet exposure.
• Stainless Steel Terminals – Designed to resist corrosion.
8 Grill Options. Sold Separately.
Optional RGB LED Kits are available to fit under all REVO 10” & 12” subwoofer grills to enable users to have thousands of LED light display combinations.
TECHNICAL SPECS:
- RMS Watts: 500
- Impedance: 4 ohm
- PEAK Watts: 1,000
- Sensitivity: 86.3 dB
- Weight: 15 lbs (6.80 kg)
- Diameter: 13.25 inches w/grill (336.55mm)
- Hole Cut Out: 11.26 inches
- Hole Cut Out: 286.00mm
- Mounting Depth: 5.19 inches
- Mounting Depth: 131.83mm
- Frequency Response: 20Hz to 400Hz
- Box Specs: Min 1.1 cu ft sealed enclosure or 1.7 cu ft ported
- Series: REVO
- Sub Size: 12″ (304.8mm)
- Cone Colour: Black Application
- Type: Enclosure

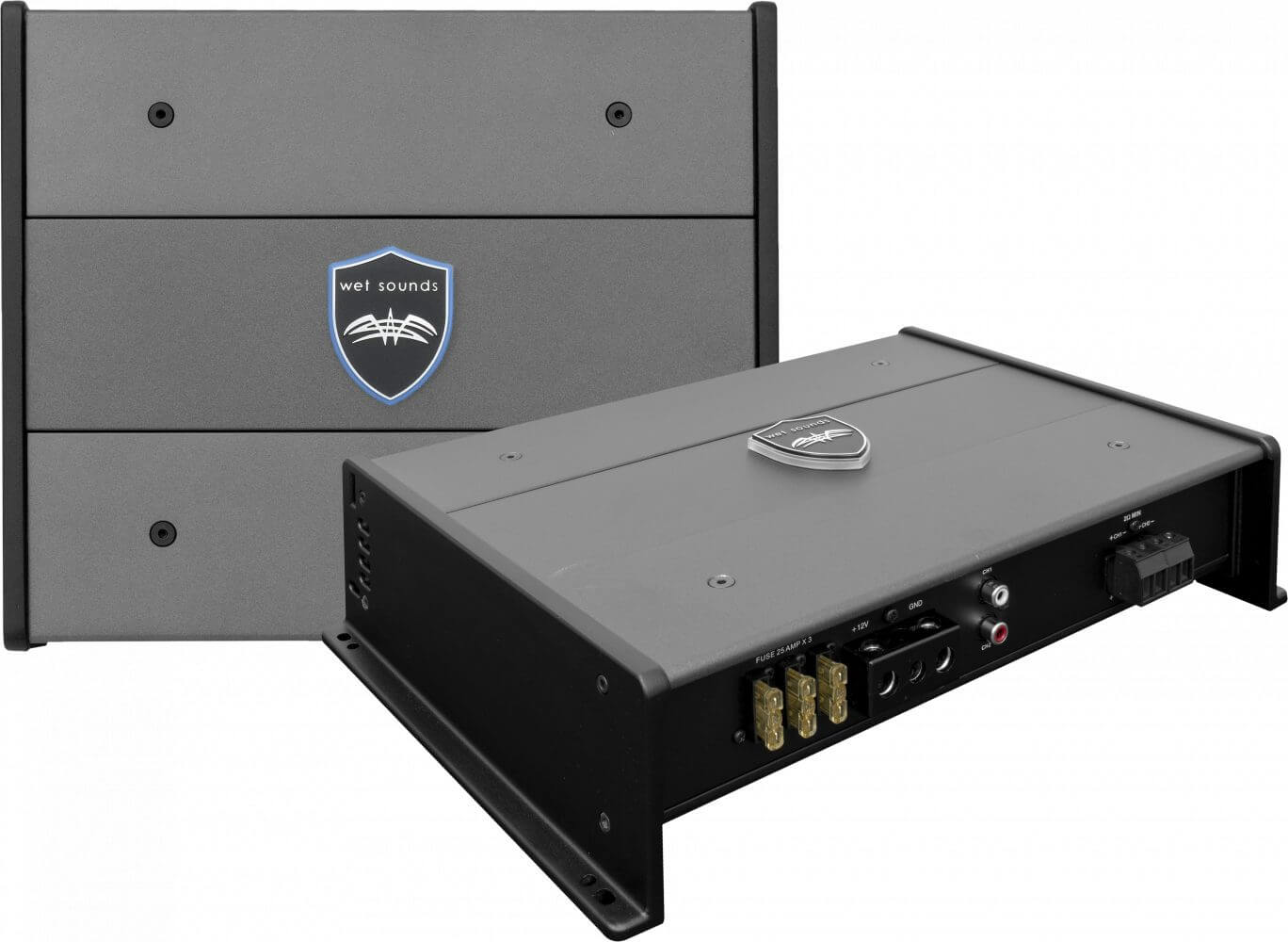

SYN DX-2 AMPLIFIER
Wet Sounds SYN-DX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. SYN-DX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. SYN-DX amplifiers are a well balanced match for all of the Wet Sounds™ products.
Please check the manual for installation notes and full technical specifications: Wet_Sounds_SYN-DX_Series_Manual
TECHNICAL SPECS:
- Stereo @ 4 Ohms 200 x 1 watts RMS >1.0% THD
- Stereo @ 2 Ohms 375 x 1 watts RMS >1.0% THD
- Mono @ 4 Ohms 750 x 1 watts RMS >1.0% THD
- Frequency Response 20 Hz – 20 KHz
- Crossover Range Low Pass 50 Hz – 250 KHz 12dB/Octave
- Crossover Range High Pass 50 Hz – 250 KHz 12dB/Octave
- Input Sensitivity 0.2 V – 6.0 V
