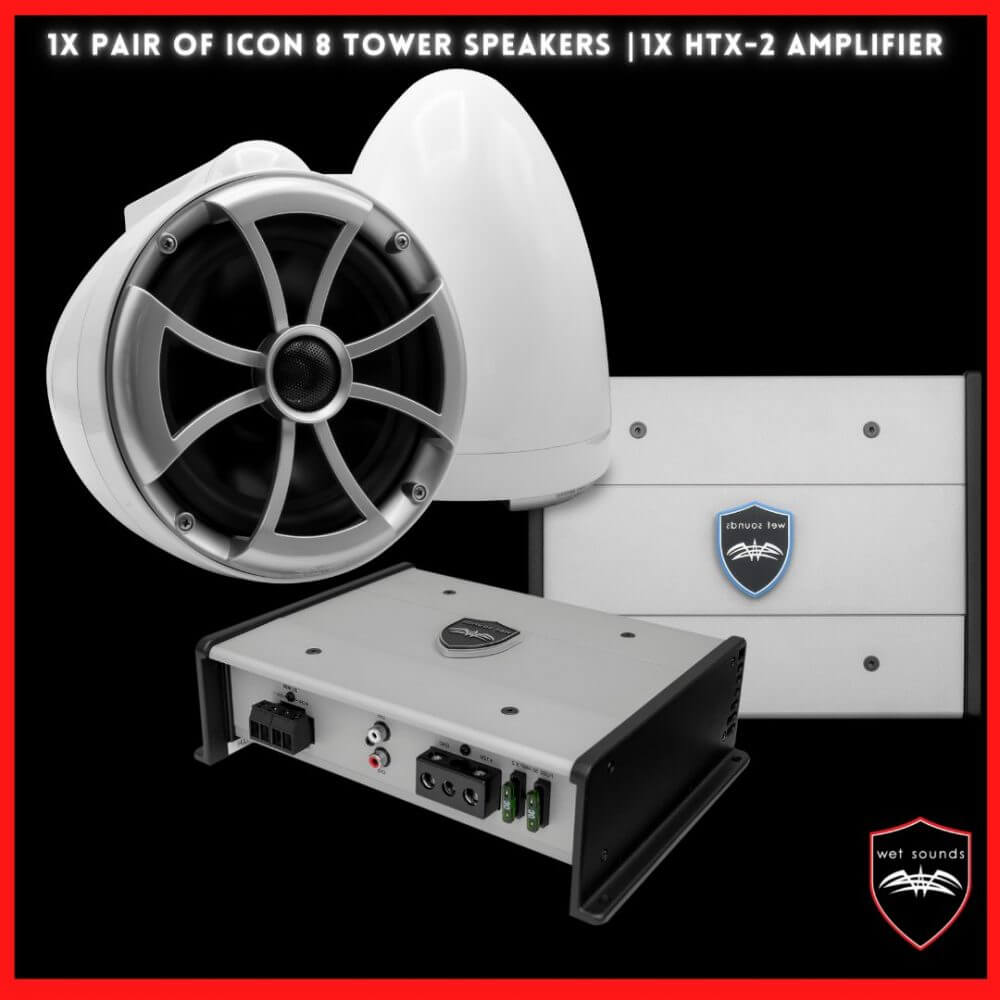

ICON8 TOWER PACKAE

HTX-2 AMPLIFIER

Wet Sounds™ Hydro-Tech™ X (HTX) Series Amplifier. Wet Sounds represents the ultimate in High Performance Marine Audio. Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. HTX amplifiers are a well balanced match for all of the Wet Sounds™ products.

Please check the manual for installation notes and full technical specifications:
Wet_Sounds_HTX-Series-Manual

• RMS Power @ 4 ohm Stereo     150 x 2 watts RMS @ < 1.0% THD

• RMS Power @ 2 ohm Stereo     300 x 2 watts RMS @ < 1.0% THD

• RMS Power @ 4 ohm Mono     600 x 1 watts RMS @ < 1.0% THD

• Input Sensitivity     Variable from 0.2V to 6.0V

• Frequency Response -3dB     20Hz-20KHz

• Crossover Range Low Pass     50Hz – 250Hz 12dB/Octav

• Crossover Range Subsonic Filter     50Hz – 250Hz 12dB/Octav

• S/N Ratio (Awtg)

• >60dB (1 watt 4 Ohm)

• >99dB (125 watts 4 Ohm)

• Note:     All specifications are for each HTX2

ICON8 TOWER SPEAKERS

The ICON Series is an extreme performance tower speaker designed for those that crave a full mid bass sound and clean detailed highs in a small form factor. The ICON series are designed for full sound in and around the boat and wake surfing range. The ICON 8 utilizes an 8 inch continuous cone mid bass driver with a grille mounted pure 1 inch titanium tweeter in a smaller form factor housing size usually found with smaller 6.5 inch speakers. Supreme functionality with multiple universal clamp configurations. Sold in pairs.

The ICON Series is an extreme performance tower speaker.

Please check the manual for installation notes and full technical specifications:
Wet_Sounds_ICON8_User_Manual

TECHNICAL SPECS:

• Value Impedance:    4 ohms

• RMS Watts:    150

• PEAK Watts:    300

• Frequency Response:    20Hz to 20Khz

• Sensitivity:    92db at 1watt / 1meter

• Mid Bass:    8 inch composite cone with polyurethane surround

• High Frequency:    1 inch HLT Titanium

• Tweeter Size & Weight Front-Back:    11 1/2″ (292.10mm)

• Hang Height    9 9/16″ (242.88mm) Width:    8 3/4″ (222.25mm)

• Hang Weight:    6.6 pounds / 2.99 kg each

Note:    All specifications are for each ICON8
