Revolution Series 6×9 HLCD with Surface
Mountable Roto-Mold Enclosure + Grill

RMS Watts:     150
PEAK Watts:     300

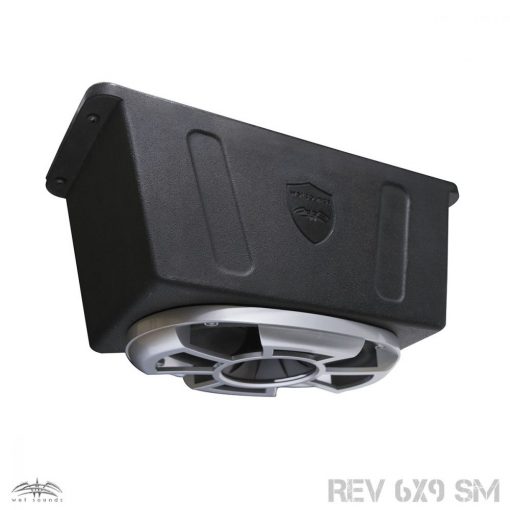

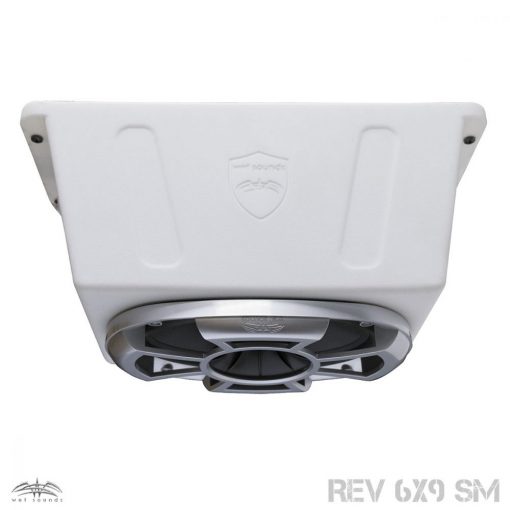

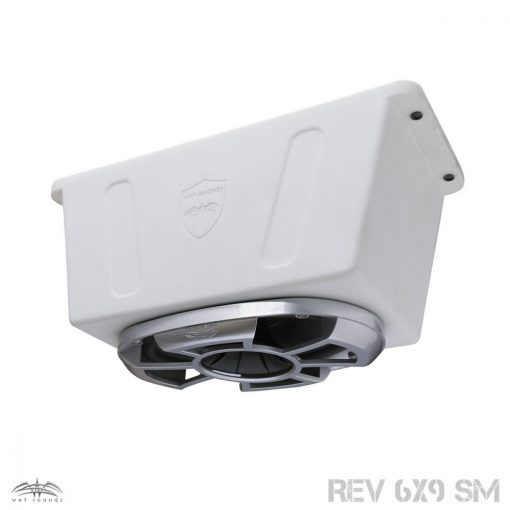

The REV6X9SM is a 6×9 HLCD speaker enclosed in a durable marine-grade surface mountable housing. Available in a BLACK or WHITE Roto-Mold housing. They feature a High Output HLCD compression driven 6×9 speaker that will deliver amazing sound throughout your boat, ATV, Golf Cart or most any application! The REV6x9SM is the perfect speaker system for installation under the gunnels on larger off shore boats as well. Providing amazing output and full sound everywhere in the boat with no visible speakers.

For under gunnel use, minimum 7” width is needed for placement.

Please check the manual for installation notes and full technical specifications:

Technical Specs

Impedance: 4 ohms
RMS Watts:     150
PEAK Watts:     300
Frequency Response:     20Hz to 20Khz
Sensitivity:     90db at 1watt / 1meter

Mid Bass:     6×9 EFG cone woofer with polyurethane surround

High Frequency:
Pro-Axial Driver. Coaxially mounted titanium
diaphragm high output horn loaded compression driver

Size & Weight
Base Width:     16.875” W (428.625 mm)
Base Height:     7” H (177.8 mm)
Base Depth:     8 3/4” (222.25mm)
Hang Weight:     10.6 lbs (4.81kg)
Notes:     All specifications are for each REV6X9SM
