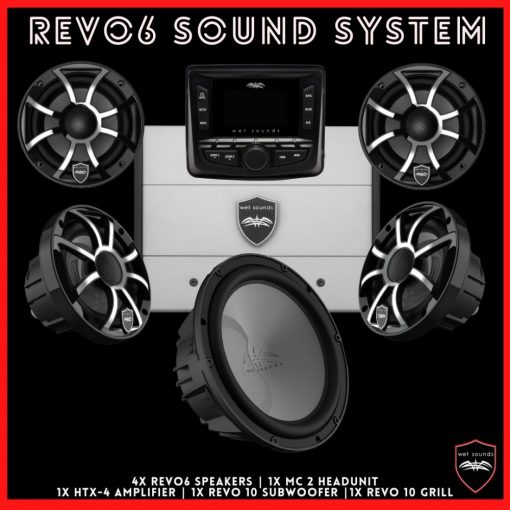

REVO6 FULL SOUND SYSTEM
$2,999.00
For those who want high quality, amazing bass and surround sound – this package is for you!
This package includes:
1x HTX-4 Wet Sounds Class D 4 Channel Marine Amplifier
2x Pairs of REVO6 Speakers
1x MC-2 Head Unit
1x REVO10 Free Air Subwoofer
1x REVO10 Subwoofer Grill

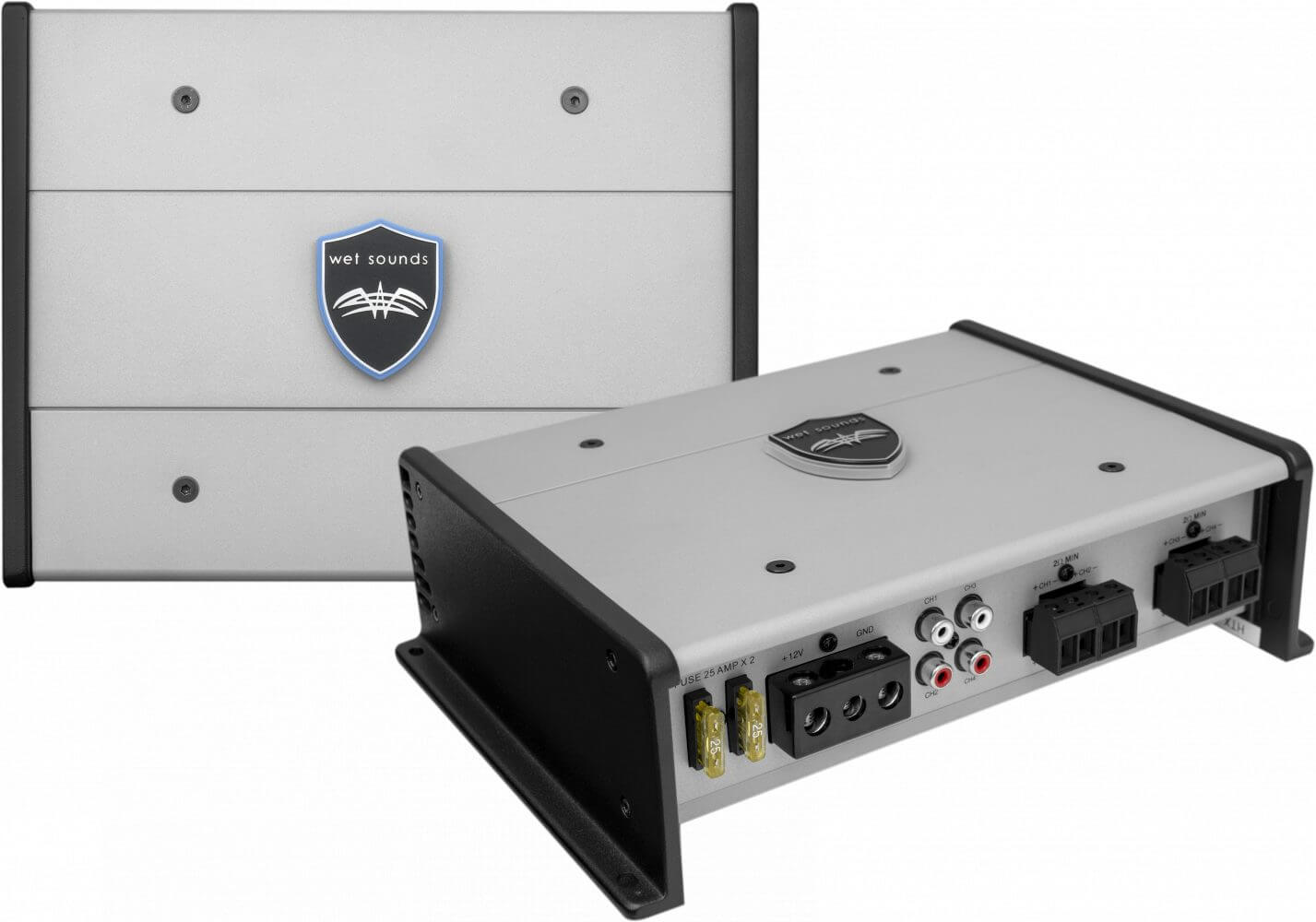

HTX-4 AMPLIFIER SPECS
Wet Sounds™ Hydro-Tech™ X (HTX) Series Amplifier. Wet Sounds represents the ultimate in High Performance Marine Audio. Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. HTX amplifiers are a well balanced match for all of the Wet Sounds™ products.
-
RMS Power @ 4 ohm Stereo 100 x 4 watts RMS @ < 1.0% THD
-
RMS Power @ 2 ohm Stereo 150 x 4 watts RMS @ < 1.0% THD
-
RMS Power @ 4 ohm Mono 300 x 2 watts RMS @ < 1.0% THD
-
Input Sensitivity Variable from 0.2V to 6.1V
-
Frequency Response -3dB 7Hz-33Hz
-
Bass Boost 0db -12db @ 45Hz
-
Crossover Range Low Pass 50Hz – 250Hz 12dB/Octav
-
Crossover Range Subsonic Filter 50Hz – 250Hz 12dB/Octav
-
Separation >52dB
-
/N Ratio (Awtg) >62dB (1 watt 4 Ohm) >85dB (125 watts 4 Ohm)
-
Note: All specifications are for each HTX4
Please check the manual for installation notes and full technical specifications: Wet_Sounds_HTX-Series-Manual

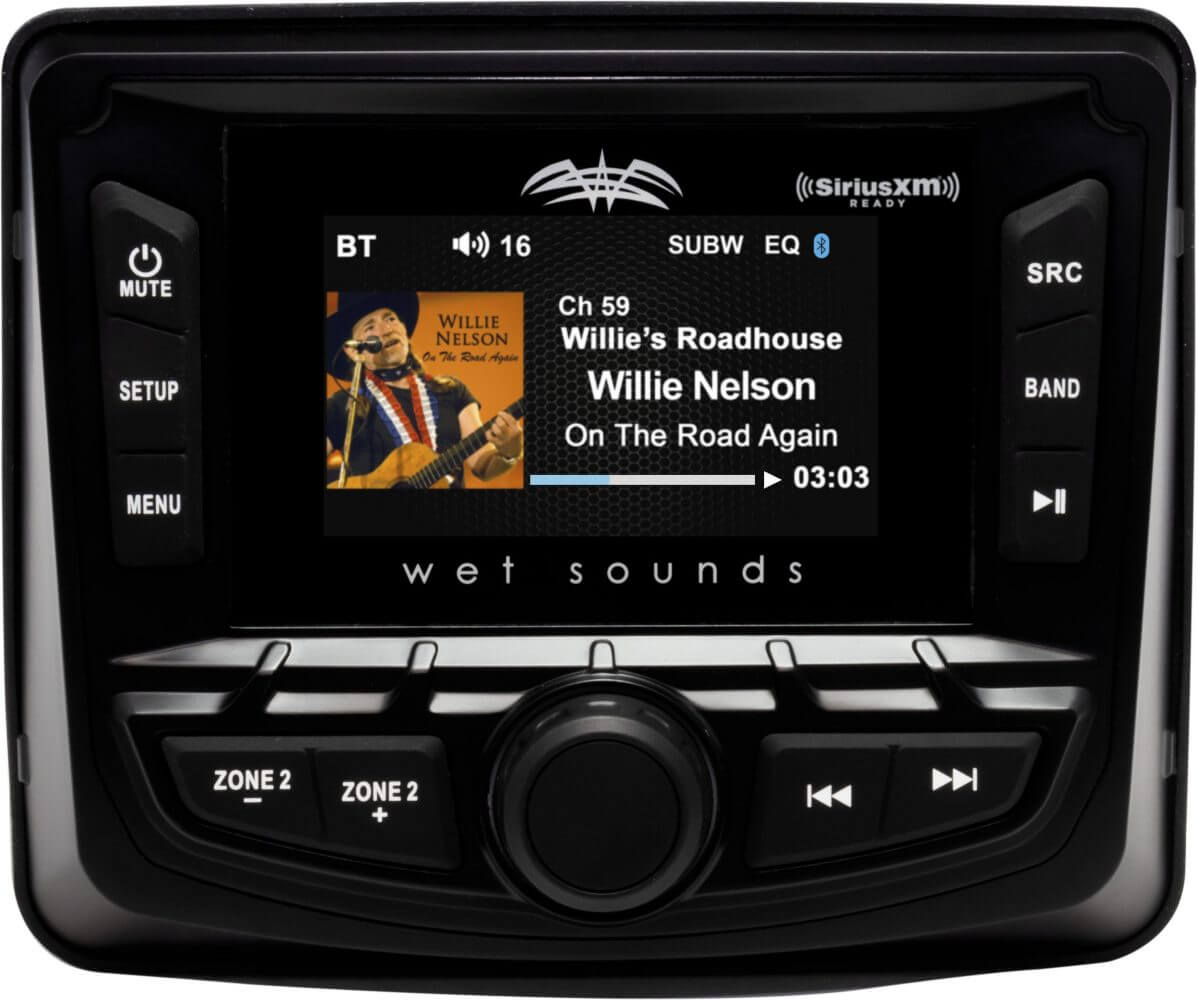

MC-2 SPECS
The WS-MC-2 AM/FM/Weather Band Tuner with RBDS and SiriusXM-Ready®, features robust capabilities packed into a small package. The MC-2 provides a solution for those who need to install a receiver in smaller and tighter spaces all while maintaining the ability to provide Wet Sounds un-matched sound quality. Features include:
- Bluetooth® Streaming, Auxiliary (3.5mm), USB, & Pandora Inputs, SiriusXM-Ready®
- Simple & Secure Bluetooth® Pairing for Android & IOS (A2DP/AVRCP 1.4)
- 2.7” Ultra Bright full colour TFT display
- IPX6 Rated (Displays album art via compatible devices)
- Playlist & folder browsing via BT or USB Connection via compatible devices
- Internal Power Amplifier 4x50W @ 2 Ohm Max Output
- Front & Rear Preamp outputs with fading capability
- 7 Band Digital Equalization
- Front Panel Mounted Independent Secondary Zone Control (Full Range or Subwoofer)
- Adjustable Input Gains for all inputs
- Day/Night Illumination & Dimming
- Accepts the optional MC-TR transom remote
- SiriusXM® Connect Tuner and Subscription required and sold separately
- Compatible with SiriusXM® SXV300 Connect Vehicle Tuner, Model # SXV300V1

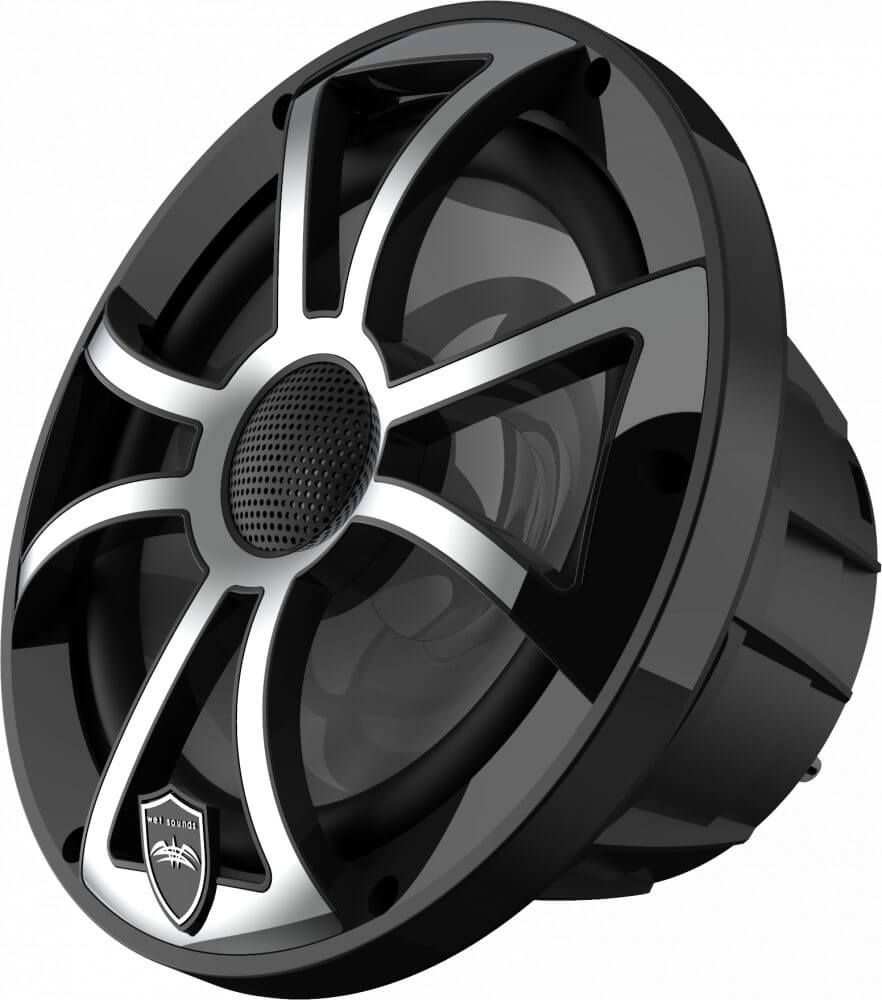

REVO6 SPECS
Wet Sounds is proud to present the newest innovation in marine speakers, the REVO Series. The series comes in three sizes, 6.5’’, 8” and 10″ models, each is loaded with industry leading features to be the best speaker on the market. The series comes with 1” Titanium Tweeters for clear high frequency detail, Wet Sounds exclusive Nylas (Nylon reinforced fiberglass) composite frame to withstand the harshest environment. An injected moulded advanced composite mid-bass cone for tight bass and distortion free performance. Each speaker comes with RGB LED tweeter glow kit that will allow thousands of colour options and with 8 different grill options for both Salt and Fresh water, you can match the look and feel of your boat.
- 1” Titanium Tweeter for crisp, clear high frequency details
- Wet Sounds exclusive Nylas (Nylon reinforced fiberglass) high stiffness composite frame to withstand even the harshest environments
- Injection Moulded Advanced Composite Mid-Bass Cone for tight bass and distortion free performance
- Wet Sounds rubber spider is the industry’s only santoprene rubber spider that is impervious to water saturation and dry rot
- Thermoformed santoprene rubber surround for permanent attachment to the cone
- 12dB audiophile crossover with air core inductors, mil spec tolerance parts and integrated tweeter protection for the highest performing marine speaker in the world
- RGB LED Tweeter Glow Kit Included allows hundreds of colour options

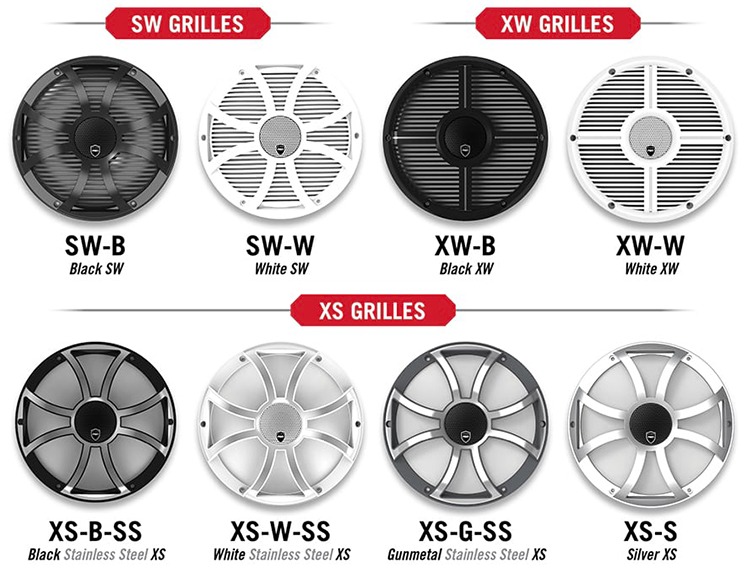

- 8 Different Grill Options available • More choices than the competition!
Technical Specs
- Value Impedance: 4 ohms
- RMS Watts: 100
- PEAK Watts: 200
- Frequency Response: 40Hz to 22KHZ
- Sensitivity: 90 db at 1watt/1 meter
- Weight: (pair) 7.8 Lbs (5.53 Kg)
- Diameter: 6.8” w/grill (172.72mm)
- Mounting Depth: 3.3” (84mm)
- Hole Cut Out: 5.0”
- Hole Cut Out: 127mm
- Note: All specifications are for each REVO6
Please check the manual for installation notes and full technical specifications: Wet-Sounds-REVO-Series-Manual
REVO10 FA SPECS
Free Air REVO subs are recommended primarily for Infinite Baffle (Free Air) applications where a dedicated subwoofer enclosure is not available or practical. The 8″, 10”, & 12” REVO FA subs are available in White or Black frames (Black frames use metallic grey cones). REVO-8FA subwoofers are available in single 4 Ohm impedance. All REVO 8″,10” & 12” Subwoofers share the same design features:
- Powder Coated Cast Aluminium (REVO10/12) or Nylas Composite (REVO8) Frame – to withstand extreme environmental use. Designed to accept optional RGB wiring.
- Injection Moulded Composite Cone – For durability & low distortion.
- Santoprene Rubber Spider – Much more durable to water & temperature changes than a traditional treated Cotton Spider used by the majority of marine speakers & subwoofers.
- Santoprene Rubber Surround – Offers a superior bond to the composite cone. Also resists deterioration due to water, temperature & ultraviolet exposure.
- Gold Plated Terminals – Designed to resist corrosion.
8 Grill Styles Available. Sold Separately Optional RGB LED Kits are available to fit under all REVO 8″,10” & 12” subwoofer grills to enable users to have thousands of LED light display combinations
TECHNICAL SPECS:
- Diameter: 11.02 inches w/grill (279.90 mm)
- Impedance: 4ohm
- Frequency Response: 20Hz to 500HZ
- Sensitivity: 88 db at 1watt/1 meter
- Weight: 10 lbs (4.53 kg)
- Box Specs: Optimized for Infinite Baffle (Free Air) applications or 1.3 cu ft sealed enclosure
- Mounting Depth: 4.62 inches w/grill
- Mounting Depth: 117.47 mm w/grill
- Hole Cut Out: 9.45 inches
- Hole Cut Out: 240.03 mm
- Series: REVO
- Sub Size: 10″ Cone (254mm)
- Colour: Black Application Type: Free Air
