SD6

$1,855.00

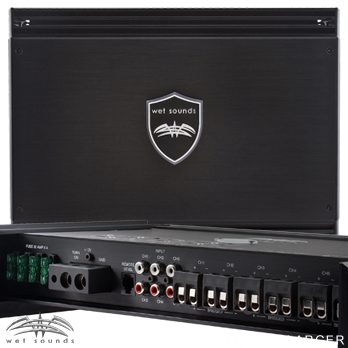

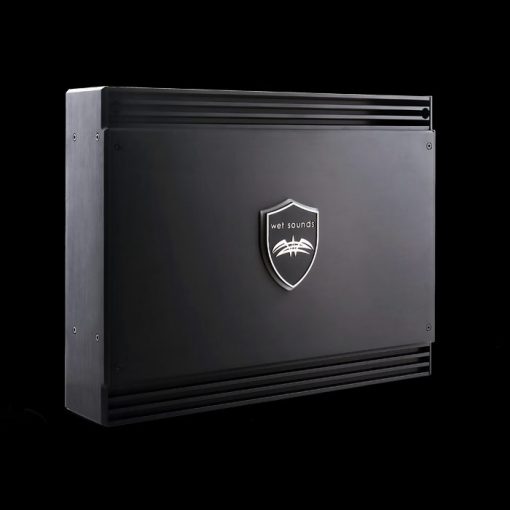

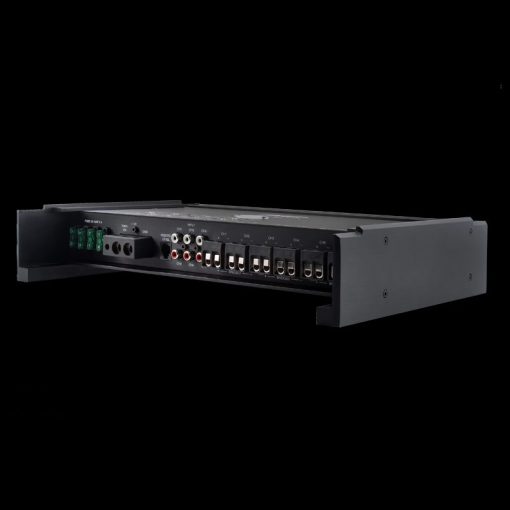

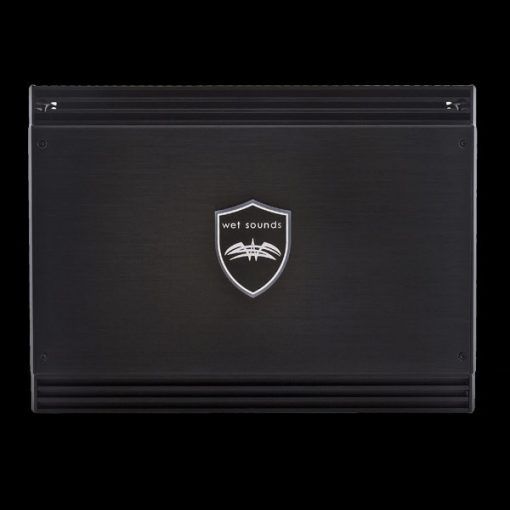

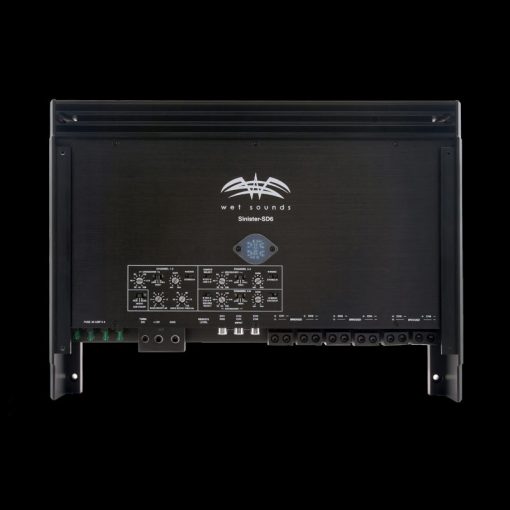

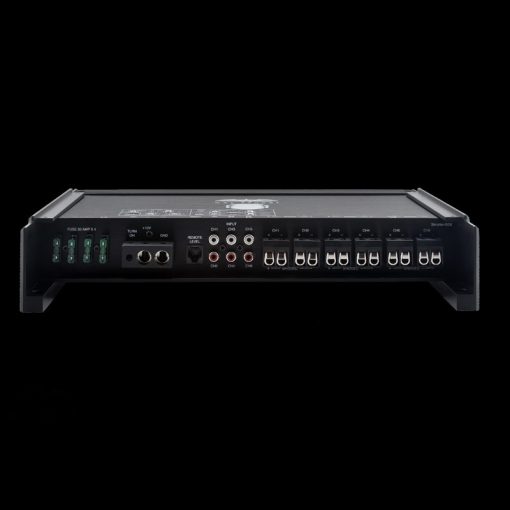

SD6: 6 Channel Amplifier
Full Range Class D Amplifier
Output Power (RMS) @ 1% 1000Hz
14.4V CEA 2006
Stereo @ 4 Ohms    6 x 185 Watts @ 95A
Stereo @ 2 Ohms    6 x 290 Watts @ 168A
Mono @ 4 Ohms    3 x 585 Watts @ 168A

SKU: SD6 Categories: ,

SD6  6 channel amplifier does an amazing 185 watts x 6 at 4 ohms,  290×6 at 2 ohms and Bridged the amplifier does 585×3 at 4 ohms

The Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED™ Power supply. The MAXED power supply is a patent pending technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier. What this means to you. Less current draw, less strain on the electrical system, less generated heat. All this results in more play time! The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install.

Please check the manual for installation notes and full technical specifications:
Wet_Sounds_Sinister_Series_User_Manual

Technical Specs

Full Range Class D Amplifier
Output Power (RMS) @ 1% 1000Hz 14.4V CEA 2006
Stereo @ 4 Ohms    6 x 185 Watts @ 95A
Stereo @ 2 Ohms    6 x 290 Watts @ 168A
Mono @ 4 Ohms    3 x 585 Watts @ 168A
Frequency Response    3dB – 8 Hz – 35 kHz
Crossover Range High and Low Pass    30Hz – 300Hz 12dB/Octave
Bass Boost    0-12.5dB @ 27Hz – 110Hz
S/N Ratio (A wtg)    >87dB >109dB
Input Sensitivity    Low Level 0.2V – 6.1V
Remote Level Range    0 db to -61 db
15.6V Overvolt Protection
15.6V Overvolt Protection
Dimensions Inches ( L x W x H )    19 1/2″ x 8″ x 2 3/8″
