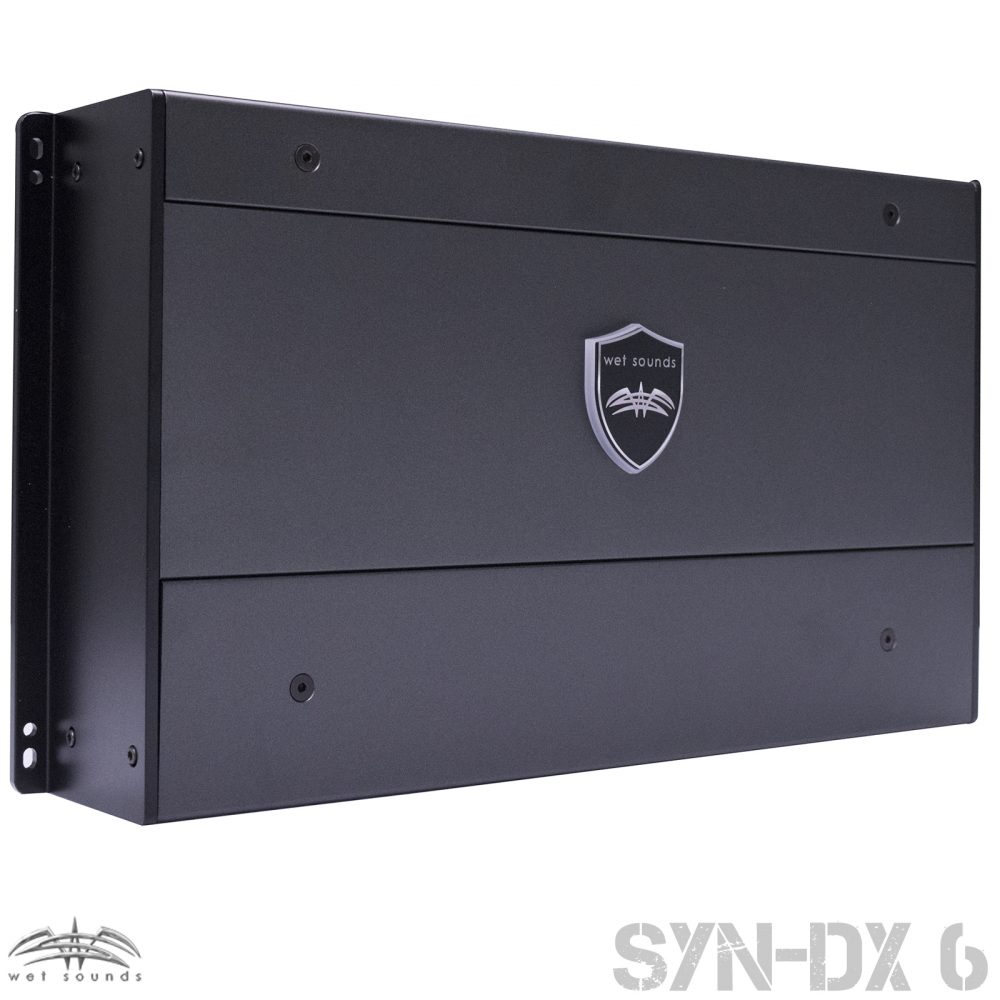

SYN-DX 6
$1,396.00
SYN-DX Series Marine Amplifiers
Stereo @ 4 Ohms (CH1-4)
125 x 4 watts RMS >1.0% THD
Stereo @ 2 Ohms (CH1-4)
200 x 4 watts RMS >1.0% THD
Mono @ 4 Ohms (CH1-4)
400 x 2 watts RMS >1.0% THD
Stereo @ 4 Ohms (CH5-6)
150 x 2 watts RMS >1.0% THD
Stereo @ 2 Ohms (CH5-6)
300 x 2 watts RMS >1.0% THD
Mono @ 4 Ohms (CH5-6)
600 x 1 watts RMS >1.0% THD
Wet Sounds SYN-DX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. SYN-DX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. SYN-DX amplifiers are a well balanced match for all of the Wet Sounds™ products.
Please check the manual for installation notes and full technical specifications:
Wet_Sounds_SYN-DX_Series_Manual
Technical Specs
Stereo @ 4 Ohms (CH1-4) 125 x 4 watts RMS >1.0% THD
Stereo @ 2 Ohms (CH1-4) 200 x 4 watts RMS >1.0% THD
Mono @ 4 Ohms (CH1-4) 400 x 2 watts RMS >1.0% THD
Stereo @ 4 Ohms (CH5-6) 150 x 2 watts RMS >1.0% THD
Stereo @ 2 Ohms (CH5-6) 300 x 2 watts RMS >1.0% THD
Mono @ 4 Ohms (CH5-6) 600 x 1 watts RMS >1.0% THD
Frequency Response 20 Hz – 20 KHz
Crossover Range Low Pass 50 Hz – 250 KHz 12dB/Octave
Crossover Range High Pass 50 Hz – 250 KHz 12dB/Octave
Input Sensitivity 0.2 V – 6.0 V
